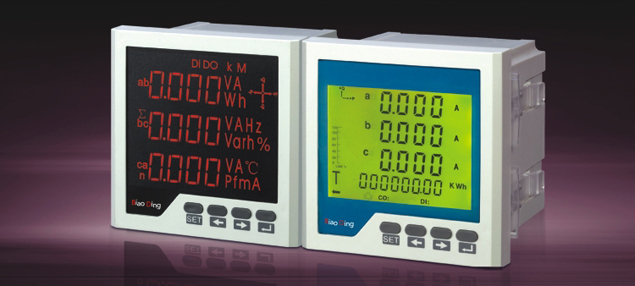

High-performance multi-function monitoring meter can measure real-time power parameters, harmonics,forward and reverse active/reactive energy and time of use energy with high precision, can timing read time ofuse energy, analyze power quality, display real-time waveform, record event and measure demand and isequipped with rich input and output interfaces to monitor and control status of on-site equipments. IntegratedRS-485 communication interface can work together with a variety of intelligent power distribution systems andenergy management systems, sharing a wealthof monitoring data and power quality data.
Multi-function monitoring meter has a very good price level and can be used to directly replace theconventional power transducer, measuring instruments, electric energy meter and relevant auxiliary unit. It hasa wide range of applications, such as energy management systems, power monitoring systems, industrial andmining enterprises, public facilities, intelligent buildings, power distribution switchgear and other networksystems.
GB/T 2264.1-2008 Mounted digital display electric measuring instruments-part1: Definitions and generalrequirements common to all parts
GB/T 2264.7-2008 Mounted digital display electric measuring instruments-part7: Special requirements formulti-function instruments
GB/T 2264.8-2008 Mounted digital display electric measuring instruments-part8: Recommended test methods
GB/T 17215.322-2008 Electricity metering equipment (a.c.) - Particular requirements - Part 22: Static meters foractive energy (classes 0.2S and 0.5S)
GB/T 17215.323-2008 Electricity metering equipment (a.c.) - Particular requirements - Part 23: Static meters forreactive energy (classes 2 S and 3 S)
DL/T 614-2007 Multifunction electricity meterring equipment (A.C.)
GB 14287-2005 Electrical fire monitoring system
GB 50045-95 Code for fire protection design of tall buildings
GB 50054-95 Code for design of low voltage electrical installations
GB 50096 Design code for residential buildings
GB 13955-2005 Installation and operation of residual current operated protective devices
GB 50016-2006 Code of design on building fire protection and prevention

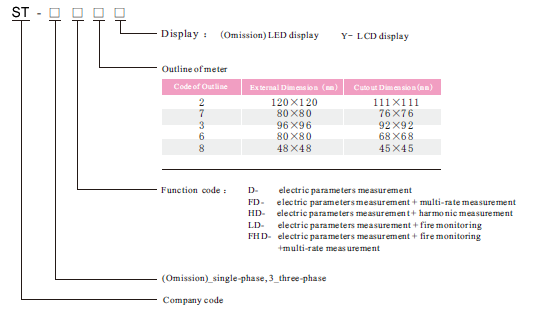

Naming meaning
Feature
Measure three phase voltage, three phase current, active power, reactive power, apparent power, power factor andfrequency with high-precision.
Measure forward and reverse active/reactive energy.
Measure and timing read time of use energy.
Measure total harmonic distortion (THD) and 2-31times odd harmonic components of three phase voltage and threephase current.
Provide LED or LCD display and local data query.
Visual menus, buttons easy to operate.
Programmable current and voltage transformation ratio.
Provide multiloop leakage current monitoring
Provide multiloop control nodes for alarm and trip control
Support the fire alarm and control to cut off power supply of failure point remotely
Support RS-485 communications and Modbus-RTU protocol.
Support digital input, digital output, analog transmission output and energy pulse output.
Easy installation, simple wiring, small quantities.
Wide range of AC/DC universal power supply: AC / DC 80V~270V.
Can complete a variety of communication software network in SCADA and PLC.
Technical Index
Accuracy Measurement
current class 0. 5
voltage class 0. 5
active power class 0. 5
reactive power class 0. 5
power factor class 0. 5
frequency ±0. 02Hz
active Energy class 0.5/class 0.2
reactive Energy class 1.0/ class2.0
Input Measurement
Wiring single-phase、3-phase 3-wire、 3-phase 4-wire
Rated current A C 5 7 . 7 V、A C 1 0 0 V、A C 2 2 0 V、A C 3 8 0 V
Rated voltage A C 1 A、A C 5 A
Overload Voltage:Sustained: 1.2 times; Instantaneous: 2 times/ 1s
Current:Sustained: 1.2 times; Instantaneous: 10 times/ 5s
Power consumption Voltage: >300KΩ , Current: <20mΩ
Impedance Voltage: <1VA (per phase),Current: <0.4VA (per phase)
Frequency 45~65Hz
Power supply
Working range AC/DC 80~270 V
Power consumption < 4VA
Functional Module
Communication interface 1 loop RS-485 Communication, MODBUS-RTU protocol
Baud rate: 2400 ~ 19200bps, Default: 2400bps
Switching value input 4 loops switching value input, dry joint
Switching value output 3 loops relay output, capability: AC 250V/5A,DC 30V/5A
Transmission output 1 loop analog output: 0/4~2 0 m A o r 0~5 / 1 0 V
Energy pulse output 2 loops energy pulse output, constant: 8000
Environment
Operational environment - 1 0℃~ + 5 5℃
Storage environment - 2 5℃~ + 7 0℃
Relative humidity ≤9 3 %,in the place without corrosive gas
Height above sea level ≤2 5 0 0 m
Safety
Insulation resistance > 1 0 0 MΩ
AC withstand voltage A C 2 K V
Electro Magnetic Compatibility
Electro-Static discharge class 4
Electrical Fast Transient pulse train class 4
Electrical surge class 4
Outline Dimension
External Dimension( m m ) 1 2 0×1 2 0;8 0×8 0;9 6×4 8;9 6×9 6;8 0×8 0;4 8×4 8;1 2 0 x 6 0;1 6 0 x 8 0
Cutout Dimension( m m ) 1 1 1×1 1 1;7 6×7 6;9 2×4 5;9 2×9 2;6 8×6 8;4 5×4 5;1 1 4 x 5 6;1 5 2 x 7 6
